EQ 504 Full Face Gasket For Oxygen Service- 150 Lb. - 1/8" Thick - 1-1/2" Pipe
EQ 504 Full Face Gasket For Oxygen Service- 150 Lb. - 1/8" Thick - 1-1/2" Pipe

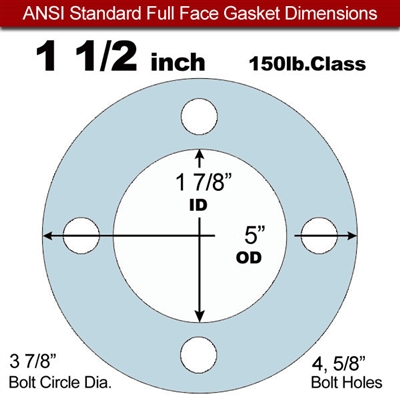

Material: Equalseal EQ 504 Cleaned for O2 Service
Type: PTFE with Glass Microspheres Full Face Gasket
Pipe Size: 1-1/2"
Pound Class: 150 Lb.
ID: 1-7/8"
OD: 5"
Thickness: 1/8"
Bolt Holes: (4) 5/8" Holes on 3-7/8" BC
Our Price: $24.47
Price Valid Until: 11/29/2022



Product Code: C-EQ504O2FF150-0125-1.5
Qty:

Description


Equalseal EQ 504 cleaned and packaged for Oxygen Service is a true re-structured PTFE gasket sheet with excellent physical properties to be used in the most demanding applications. Its unique construction which includes premium ptfe resin and glass microspheres limits the cold flow problems associated with skived PTFE sheets. Equalseal EQ 505 is more compressible than styles of re-structured PTFE and is effective in applications where bolt load is limited by equipment design.

Material Specs
  • Equalseal PTFE Blue Material Specs
