Home > Gore® UPG Gasket - Ring - 10 pack - DN25/PN40- 3.18mm Thick - 34mm ID - 71mm OD
	Material: Gore® Universal Pipe Gasket - 10 Pack Thickness: 3.175mm Type: Ring Gasket OuterDiameter: 71mm Inner Diameter: 34mm Box Weight: 0.5 Lb Our Price: $81.94 Price Valid Until: 11/29/2022 Product Code: C-GOREUPGRG-125-DN25PN40-10 Qty:

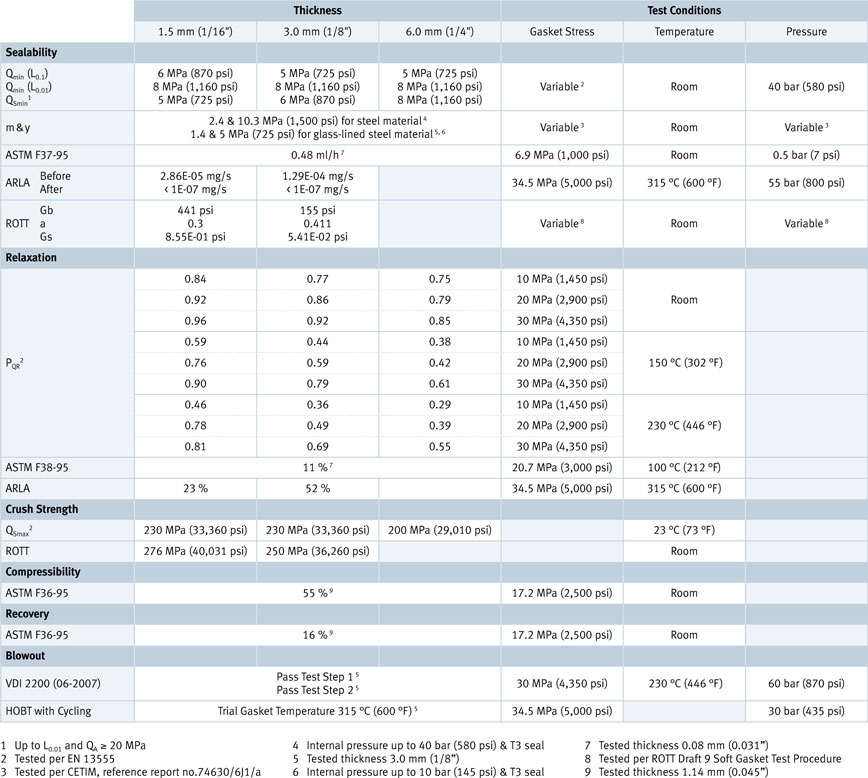

Description   Material: 100 % expanded PTFE (polytetrafluoroethylene), with multidirectional strength Operating Range: The maximum applicable pressure and temperature depend mainly on the equipment and installation. Typical use: -60 °C to 230 °C (-76 °F to 446 °F ); industrial full vacuum1 to 40 bar (580 psi) Maximum use: -269 °C to 315 °C (-452 °F to 600 °F ); full vacuum to 210 bar (3,000 psi) For applications outside the typical use range, Gore recommends an application specific engineering design calculation and extra care during installation. Also, consider retorquing after a thermal cycle when the equipment has returned to an ambient temperature condition. Please contact Gore if further guidance is required. Chemical Resistance: Chemical resistance to all media pH 0–14, except molten alkali metals and elemental fluorine. Shelf Life: ePTFE is not subject to aging and can be stored indefinitely. Material Specs
