EQSWI-304/FG - 47.519" ID x 50.511" OD Custom Spiral Wound Gasket
EQSWI-304/FG - 47.519" ID x 50.511" OD Custom Spiral Wound Gasket



Type: Spiral Wound with FG Filler
Pound Class: Custom
Guide Ring Thickness: 1/8"
Winding Thickness: 0.175"
Winding OD: 49.724"
Winding ID:48.70"
Inner Ring ID: 47.519
Guide Ring OD 50.511"
Inner Ring Material 304 SS
Outer Ring Material 304 SS
List Price: $421.98
Our Price: $324.60
Savings: $97.38
Price Valid Until: 11/29/2022



Product Code: C-EQSWI-304FG-47-50-304O
Qty:

Description


The style EQFG spiral wound gasket has been engineered to provide an alternative to sheet gaskets in Class 150 and Class 300 service. Style EQFG gaskets have the inherent strength, resiliency and blowout resistance of spiral wound gaskets, yet require low bolt load for seating. They are manufactured with high purity flexible graphite filler for optimum sealability, and are available for the full range of standard Class 150 and Class 300 flanges, as well as other non-standard low pressure flanges.

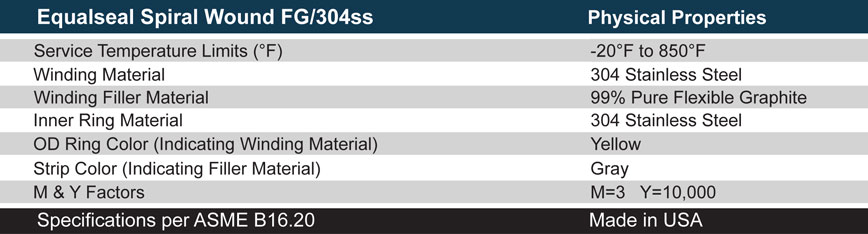

Material Specs
