Ring Type Joint - R11 - 304 Stainless Steel - Octagonal
Ring Type Joint - R11 - 304 Stainless Steel - Octagonal

Alternative Views:
ANSI Standard Sizes 1/2" - 300/600lb.
API Standard Sizes -

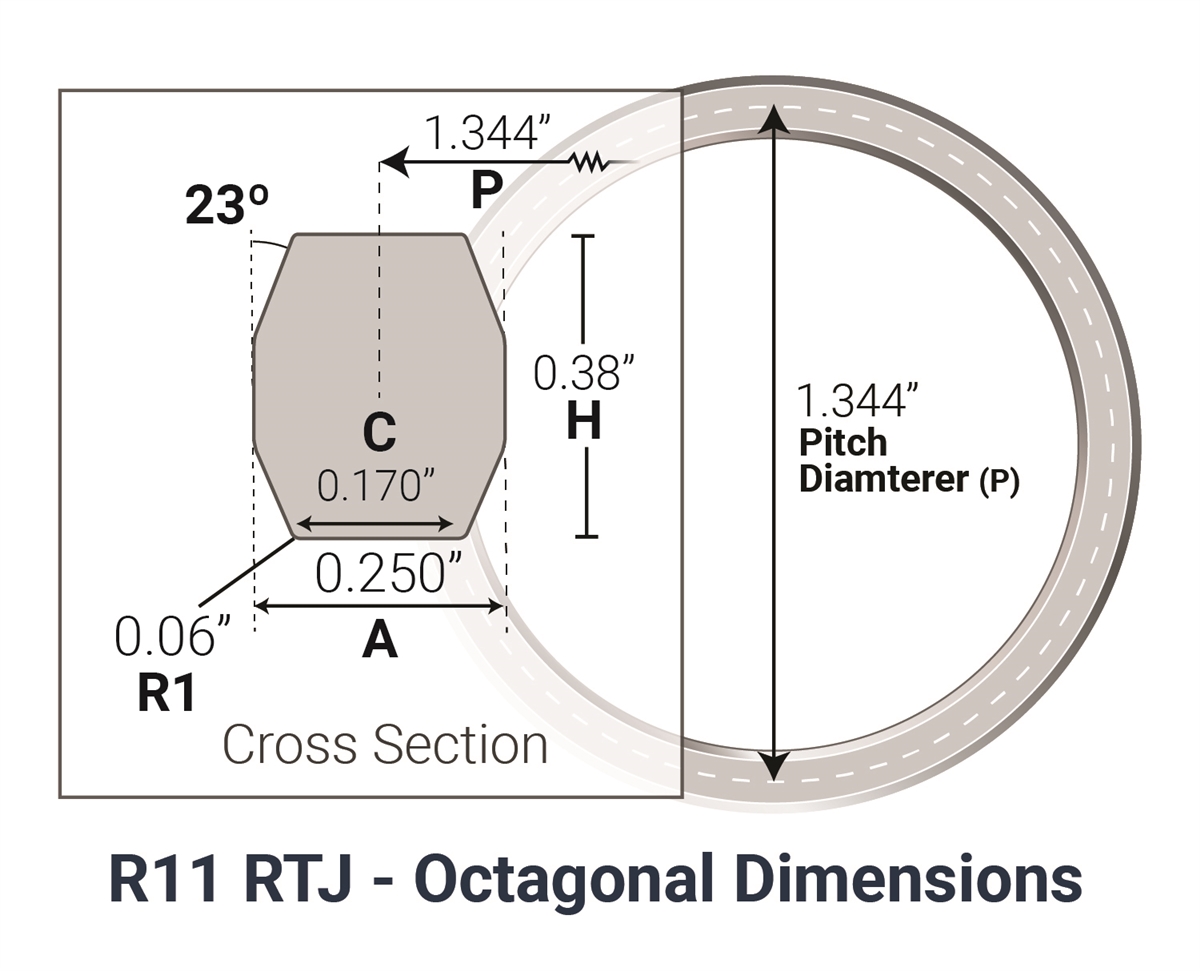

Octagonal

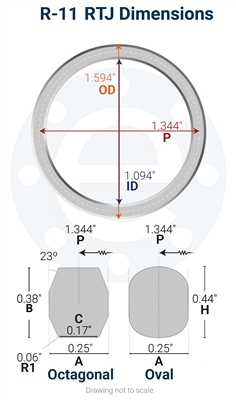

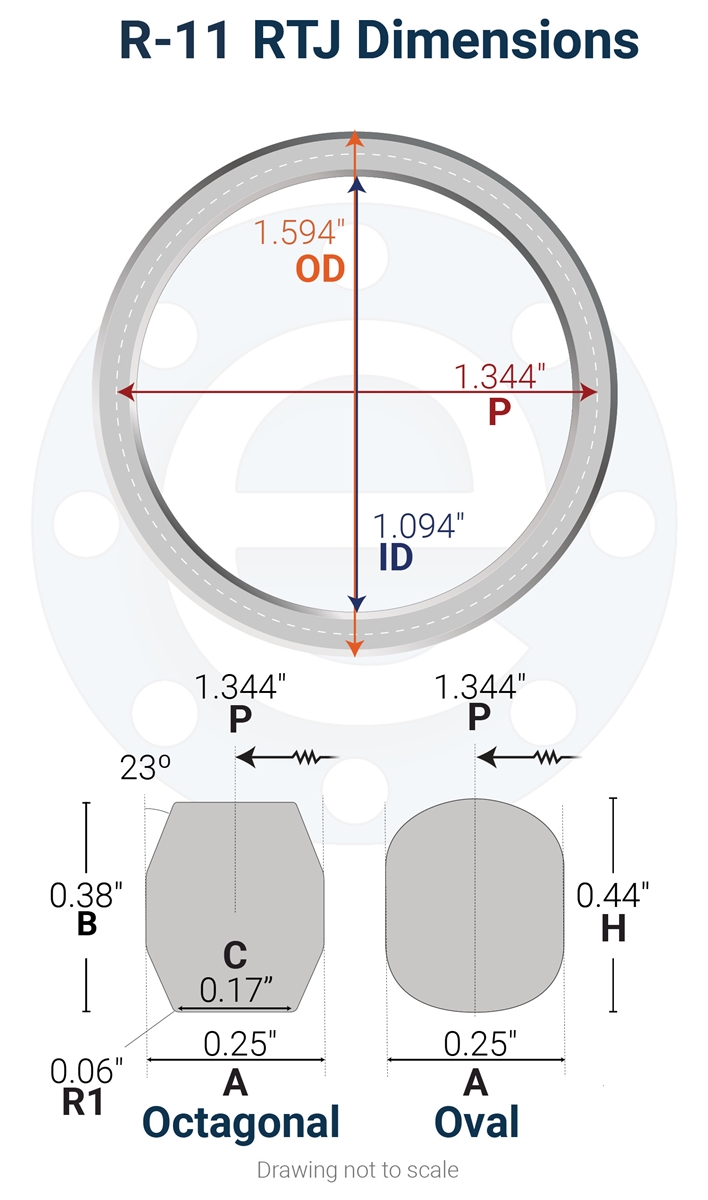

Pitch Diameter(P) 1.344"
Width of Ring Octagonal(A) 0.25"
Height of Octagonal Ring(B) 0.38"
Width of Flat on Octagonal Ring(C) 0.17"
Radius in octagonal ring(R1) 0.06"
Weight Oval 0.111 lbs
Oval
Pitch Diameter(P) 1.344"
Width of Ring Octagonal(A) 0.25"
Height of Ring Oval(B) 0.44"
Weight Octagonal 0.104 lbs
Our Price: $5.50
(Minimum order):  4


Product Code: RTJ-R11-304-OCT
Qty:

Material Specs
