Strainer Gasket-Garlock Blue-Gard® 3000 - 2" Pipe Size, Full Face, 100 SS Mesh
Strainer Gasket-Garlock Blue-Gard® 3000 - 2" Pipe Size, Full Face, 100 SS Mesh



Material: GARLOCK BLUE-GARD® 3000
Type: Full Face Strainer Gasket
Pipe Size: 2"
Class: 150 Lb.
ID: 2-3/8"
OD: 6"
Thickness: 1/8" (1/16" per gasket)
Bolt Holes: (4) 3/4" Holes on 4-3/4" BC
Mesh Type: 100 Stainless Steel
Our Price: $28.13



Product Code: STRAINER-FF-2-100SS
Qty:

Description


Stainless steel mesh gasket strainers are made to protect expensive downstream equipment from dangerous in line system debris. Debris like weld beads, pipe scale, grit, and other foreign materials are "strained" out by the stainless steel mesh which spans the ID of the gasket. Strainer Gaskets are a very effective and inexpensive preventative measure to reduce failures and damage to downstream equipment.

  • Laminated construction, easy to install between 2 flanges (no extra space required)
  • Screens are 100% stainless steel
  • Screen mesh available: includes 20, 60, 80 or 100

Garlock Blue-Gard 3000

13

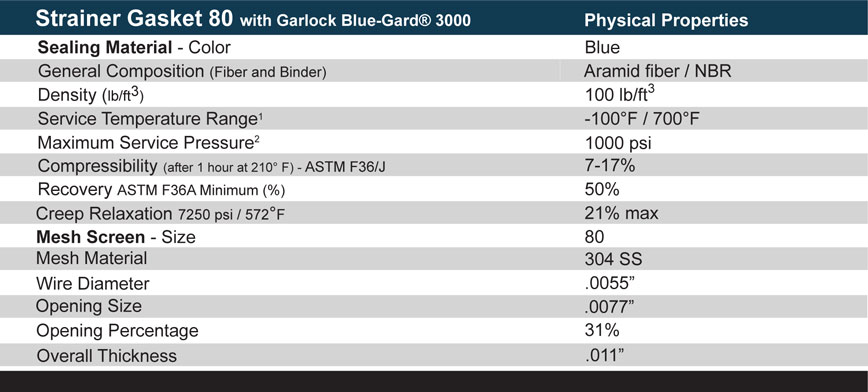

Material Specs
